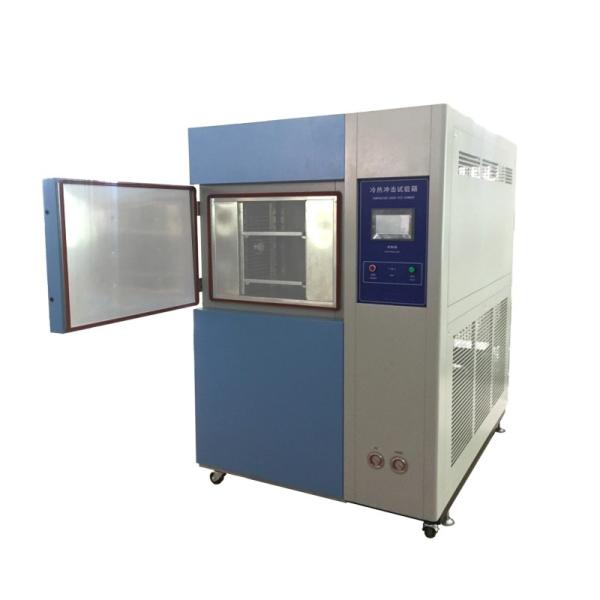

5KW Humidity Controlled Chamber Rainproof Thermal Shock Test Chamber OEM

Guangdong ALI Testing Equipment Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

5KW Humidity Controlled Chamber Rainproof Thermal Shock Test Chamber OEM

  • 1
  • 2

Brand Name : GSKA

Model Number : Climatic Test Chamber

Certification : CE SGS ROHS UL CE

Place of Origin : Dongguan China

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 100 Set / Sets per Month

Delivery Time : 10-60days after confirmed payment or by contract stipulation

Packaging Details : Export package

Shock Temperature : -40°C~150°C

Controller : Programmable LCD Touch Screen

Temperature fluctuation : ±1.0℃

Temperature uniformity : ±2.0℃

Customized support : OEM

Power : 220V , 50Hz

Condenser : Water-cooled condensing agent

Controller resolution : ±0.3℃;±2.5%RH

Contact Now

Programmable 150L Air Cooled Climatic Test Chamber Easy To Operate ​


Corresponding Standard:

GB11158 GB10589-89 GB10592-89


GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001


GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93


ASTM D1735 EIA - 364-59 IEC60068-2-1.1990


IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C


It is intended for research and quality control of various materials, products, components, assemblies, structures, mechanisms, measuring instruments, etc. associated with temperature exposure at low temperatures down to -30 ° С and positive up to + 100 ° С and humidity from 10% to 98% at certain temperatures (on request).

It is used to simulate special operating conditions in laboratories of radio-electronic, mechanical engineering, food, chemical, pharmaceutical, etc. industries.

Working Principle

This is so called Fast Shipping Thermal Shock Test Chamber, Thermal Chamber, Thermal Shock Chamber.


Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber.


When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.


Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized. During the whole test, test sample is no need to be moved, and without any human intervention.


Shock Temperature ragne-65°C~150°C
Heating up timeRT~200°C about 35min
Cooling down timeRT~-70°C about 90min

Temp recover time/
change time

≤5min / ≤10sec
Temp control accuracy/±0.5°C / ±2.0°C
distribution accuracy
Inner materialsSUS 304# stainless steel plate for inner chamber,and stainless steel plate
+ spray painting for external chamber.
Insulation materialsHigh-temperature high-density amino acid ethyl ester foam insulator material.
SystemsP.I.D+S.S.R+Microcomputer balanced temperature control system.
Cooling systemsSemi-hermetic two-stage compressor (water-cooled) /
hermetic two-stage compressor (air-cooled).
Safety devicesFuse switch, high and low pressure protection switch compressors,
refrigerant pressure protection switch failure warning system, electronic siren.
FittingOutlook window (special purchase), the upper and lower adjustable
compartment two energized measured line hole, casters,level bracket.
Power3 phase AC380V 50HZ/60HZ
ControllerTanwan TATO or TH900C
CompressorGermany / Bock Brand


We produce:

A humidity chamber is a mechanism that examines how products react when exposed to variations in humidity. This type of environmental testing is used by manufacturers to test the various parameters of their products in the harshest of conditions.

The purpose of humidity chambers is to test the influence of varying environments on products to determine the length of their usefulness and at what point they will fail. The collected data assists engineers in adjusting their designs and selecting more resilient materials.

The different varieties of humidity chambers allow testing to be completed in a static or dynamic state depending on the required data and the type of product. Humidity chambers are used as extended testing chambers to determine a specimen‘s reaction to elevated moisture conditions when exposed for weeks or months.






We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency

- Climatic and refrigerating chambers, cold treatment chambers;

- A variety of industrial and laboratory drying ovens;


- Testing temperature and climatic equipment;

- Muffle and chamber furnaces;


- Various equipment under the order according to the customer's specifications.
